Introduction

Here is an example of the eValid LoadTest feature available with an eValid LOAD License. This particular example runs 50 eValid browsers in parallel using 5 different script files opening each sub-browser as a 50x50-pixel browser instead of a maximized browser -- this is done because, otherwise, the screen area becomes too busy. Each browser is set to repeat running each script 5 to 10 times.

Recording The Test

Start by making the script .evs file(s) that are to be played back in parallel. Then make the loadtest control file, evloadtest50.evl,  with whatever quantity of browsers and options that satisfy your loadtesting needs.

Remember: Make loadtests that utilize your available bandwith on the Internet connection available to you. Don't over-load your Internet connection. Also, remember to keep all necessary files in the path that is set in the "Settings > Record/Play Preferences" menu, as all sub-browsers use the path that you set through the Preferences menu to the Registry.

Script

Go To Bottom Of Script

ProjectID "Test" GroupID "Load" TestID "LoadTest_50" # This script is organized into 5 groups of 10 playbacks each. # For completeness, all lines of the script are shown here. _eValid "script1.evs" "001" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "002" "6" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "003" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "004" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "005" "8" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "006" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "007" "5" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "008" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "009" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "010" "9" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "011" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "012" "6" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "013" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "014" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "015" "8" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "016" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "017" "5" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "018" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "019" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "020" "9" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "021" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "022" "6" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "023" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "024" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "025" "8" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "026" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "027" "5" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "028" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "029" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "030" "9" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "031" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "032" "6" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "033" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "034" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "035" "8" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "036" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "037" "5" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "038" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "039" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "040" "9" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "041" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "042" "6" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "043" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "044" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "045" "8" "" "-pm 0.5 -wh 50 -ww 50" _eValid "script1.evs" "046" "5" "" "-pm 0.9 -wh 50 -ww 50" _eValid "script2.evs" "047" "5" "" "-pm 0.8 -wh 50 -ww 50" _eValid "script3.evs" "048" "5" "" "-pm 0.7 -wh 50 -ww 50" _eValid "script4.evs" "049" "5" "" "-pm 0.6 -wh 50 -ww 50" _eValid "script5.evs" "050" "9" "" "-pm 0.5 -wh 50 -ww 50"

Go To Top Of Script

Machine Details

This test was run on a 733 MHz Pentium III with 512 MBytes of RAM and a 64 MB AGP Video Card. The machine is running Windows 2000 Professional SP 2 and has an IE 6 browser installed. To obtain these results we had to make certain adjustments to some OS parameters: (1) the Desktop Heap was set at 32,768 Bytes (set at intervals of 8,192 Bytes); and (2) the Virtual Memory was set to 900 MBytes. For more information on these machine adjustments, please see the CPU Adjustments page.

Typical Playback

Click "Playback > Start Playback" to begin the playback process. When playback has completed, click "Window > Logs > LoadTest Log".

Graphical Outputs

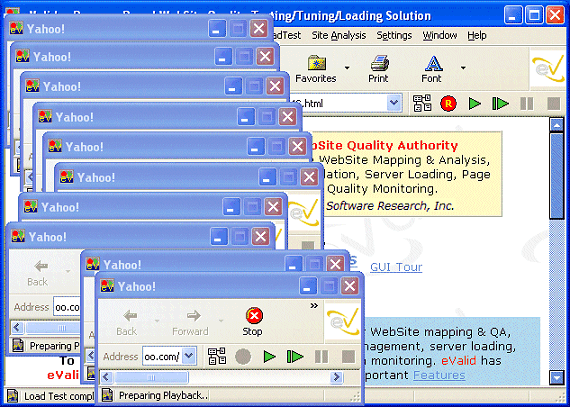

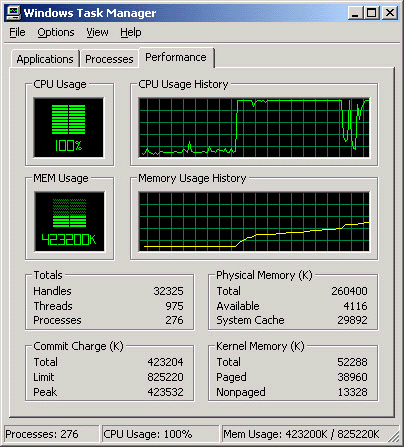

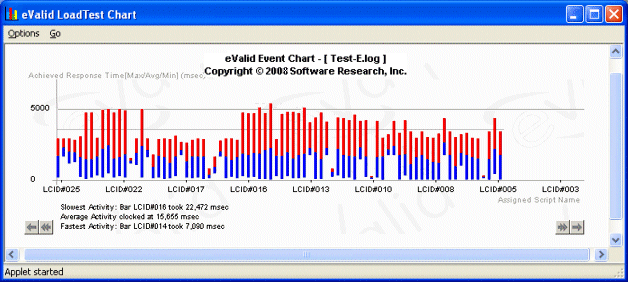

The pictures (with thumbnails) below show: (1) Running this LoadTest script with 50 browsers in parallel (the picture shows only a portion of the screen, which can become extremely busy); (2) The resource utilization when running 50 browsers in parallel; (3) The LoadTest Chart that shows the results of the execution.



Lessons Learned

This is an excellent way to test the performance of your WebSite and server under heavy load sessions. You can gather data on how well your site performs when many users make requests for your WebPages. One can also see how multiple simultaneous requests are affected by the backbone of the Web, the design of your WebPage(s), and the limitations of the server where your WebSite pages reside.

Additional Information

One can learn that the Web's performance, and your ISP's performance, greatly vary through out the day. The best weapon one has at his or her disposal is to design the WebPage to be efficient as well as effective.
