Summary
This page explains how eValid processes folder and file names from various points of view.

Creating A Test Suite Folder Hierarchy and Individual Test Scripts
The Project/Log Management settings Menu controls how new eValid test recordings are named and stored. There are usually two steps to this process:

1. Establishing the structure and locations for all the tests in a project.
2. Naming a new test, recording it, and checking it out.

Project Management Files (Project/Log Management Settings) These files are used to establish the working folder, plus the location in the 3-level hierarchy of Project > Group > Test. eValid rules aimed to prevent faulty naming are described here.
Area	Purpose	What's Allowed	eValid Response	Hints
Working Folder (Working Folder)	Area where projects, groups, test scripts are put.	Path to already-existing working folder.	Does not accept blank. Checks validity of folder. Requires a drive letter [C:\] or Networked computer prefix [\\].	Choose a folder where you want all of your work to be stored.
Project Name	Name of your project (a set of groups of tests).	Non-blank folder name.	Does not accept blank. Field cannot contain any: \ : / * ? " < > | # + characters. Existence of folder is not checked. eValid will create the folder if needed.	Choose a meaningful name for your project, one that describes what all of tests in the project are about.
Group Name	Name of one of your group of tests.	Non-blank folder name.	Does not accept blank. Field cannot contain any: \ : / * ? " < > | # + characters. eValid will create the folder if it it needs it and it does not exist.	Choose a meaningful name for this group in your test project, one that describes what all of tests in the group are about.
Test Name	Your test script name (file name).	Non-blank test file name.	Does not accept blank. Field cannot contain any: \ : / * ? " < > | # + characters. When you start a recording this name will be the initial name of the test. If at that time you change the test file name, the new name is stored in this field.	Choose a meaningful name for your test, so you can remember what the test is for.
Log Management Files (Project/Log Management Settings) These files are used by eValid as the Event Log (-E.log) and the three subsets of the event log: Mesage Log, Performance Log, Timing Log (-M.log, -P.log, -T.log).
Area	Purpose	What's Allowed	eValid Response	Hints
Log File Names	File names for log data.	Non-blank file name or full path name to file.	eValid checks that the path name would be legal, but does NOT check existence of the file, which is assumed to already exist at playback time. Field cannot contain any: \ : / * ? " < > | # + characters, and can only contain : and \ if a full path is used. If left blank, eValid fills in the name Test Name-E.Log from what is in the Test Name field. This applies to the -M.log, -P.log, -T.log.	If you choose Auto-name Log Files during your recording from the script name dialog, or if you edit your script to say LogID "Auto", eValid will name all of the log files after the specified Test Name.

Playing a Script That Already Exists
There are usually two steps to this process:

1. Identifying the exact file to be executed.
2. Confirming that the playback produces logfiles in the right location.

Regular Windows file conventions and procedures are used to identify and select the script file to play back. The Project/Log Management settings Menu is used to identify where to put the resulting log files.

Log Management Files -- Playback (Project/Log Management Settings) A test script can be opened from the eValid browser (File >> Open Script) or from the script file window (File >> Open.evs).
Area	Purpose	What's Allowed	eValid Response	Hints
Log File Naming on Playback	How log files are named on playback.	Pre-defined files as described above.	On playback, regardless of where the script was stored, the names defined in the current settings [i.e. whatever is stored in the registry] are used for the log files.	It may make sense to use a Profile to recover the locations of logs for script playback.

Effect of LogID In Playback Script

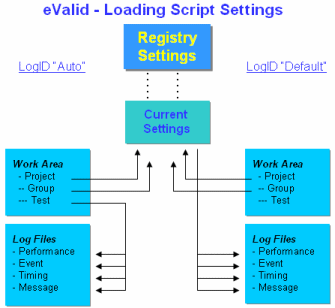

The diagram below shows how the value in the LogID script command affects the delivery of logfiles. Note that in both cases the information in the script file in the ProjectID and GroupID fields is reflected back into the curent settings. However, the test name is NOT reflected in this way, in order to allow creation of a new test in the same Project and Group.

---

---

Summary of Record/Play File Actions and Interactions
Here are additional details about how eValid behaves when you are doing simple things and deviating from the preset (registry) settings or your current settings. Remember, eValid's current settings values:

• Apply now (to your current test) ONLY if you have clicked OK,
• Apply in the future (for a new test or a batch playback) ONLY if you have clicked Save,
• Apply now AND in the future ONLY if you have clicked Save and then OK.

Here are the groundrules for typical situations.

• Recording: Making a New Test Script
  • Recording
    • The LogID "DEFAULT" or LogID "AUTO" is set from an option on the script file dialog box, if you have requested this in your recording settings.
    • If you haven't made that setting, then LogID "AUTO" is the default value used.

  • Recording and Playback
    • The working folder MUST exist. eValid won't let you out of settings without this. Without this defined nothing else works.

  • Recording
    • New Script: The script file name is taken from the current settings (see above). You can choose a different name when you are given the option of confirming the file name (same dialog as above). A new test file name will be reflected back to the current settings.
    • Replace New Script: Overwrite of a script file is OK. You can repeat the overwrite as often as you want (i.e. you can revise the script as often as you like before committing it).

• Playback Variations Within The Current Script
  • LogID interactions
    • If LogID "AUTO" and LogID "DEFAULT" are both present the FIRST one is accepted and settings are ignored.
    • If NO LogID is present, eValid assumes LogID "DEFAULT".

  • Other ID interactions -- Absent specifications
    • If ProjectID is absent, eValid assumes the global default "Project"
    • If GroupID is absent, eValid assumes the global default "Group"
    • If TestID is absent, eValid assumes the test name in the current settings.

  • Altered ProjectID, GroupID Values
    • If you edit/alter a script to have new values for the ProjectID and the GroupID, these values are NOT back loaded to the current settings. The playback will be into the current folder at the altered names' sub-folders. eValid will create these folders if needed.
    • If you load a new script then the ProjectID and GroupID from the script ARE placed in the current settings.

• Logfiles on Playback
  • If TestID "AUTO" appears in the script then the logfiles will be placed in the defined working folder, using the names for the Project and Group folders that appear in the script, or the standard defaults (Project and Group) if those commands do not appear.

  • If TestID "DEFAULT" appears in the script, the logfiles will be placed in the defined working folder, using the names that currently exist in the preferences.

    In this case the defined LogFile names will respect the defined working folder AND the Project folder name AND the Group folder name. eValid will create these names if necessary.

    However, if complete paths appear in the current settings then eValid will use those complete path names without checking anything else about these paths (eValid assumes the complete paths are present).
