Summary
This page presents eValid's initial demonstration of functional/regression testing for the SkyDrive PowerPoint application. The scripting was done by recording "from life" followed by manual script adjustment by use of eValid structural (index/motion) commands.

The scripts below are organized as follows:

• goALL.evs: This script is the "top level" script that invokes the next three in order. You could run the newppt.evs script several times, each run creating a new presentation.
• login.evs: This script accomplishes the login process.
• newppt.evs: This script creates a new PowerPoint presentation, into which it. enters "HELLO WORLD!" and "eValid Testing" followed by a notes entry "Testing Test - Hello ....".
• signout.evs: This script accomplishes the signout process.
• delete.evs: After several repetitions of goALL.evs (which means several repetitions of newppt.evs) you can optionally use this script to delete a presentation or whatever happens to be the third item in the Public folder.

Scripts
Here is the complete set of scripts used in this example.

• Top Level Script
  Click To Load goALL.evs

  # # Recording by eValid™ V9 Build #292, Build Date: (Oct 20 2009) # Copyright © 2009 by Software Research, Inc. # Recording made on: Microsoft Windows Vista Service Pack 1 (IE 7.0.6001.18000), HostName "aruba" # Recording started at: <2009/12/07 13:40:31> # ProjectID "Project" GroupID "microsoft" TestID "goALL" LogID "AUTO" CallScript "login.evs" CallScript "newppt.evs" CallScript "signout.evs"

• Login Script
  Click To Load login.evs

  # # Recording by eValid™ V9 Build #292, Build Date: (Oct 20 2009) # Copyright © 2009 by Software Research, Inc. # Recording made on: Microsoft Windows Vista Service Pack 1 (IE 7.0.6001.18000), HostName "aruba" # Recording started at: <2009/12/09 12:15:56> # ProjectID "Project" GroupID "microsoft" TestID "login" LogID "AUTO" ScreenSize 1440 900 FontSize 2 DeleteCache DeleteCookies InitLink "http://login.live.com/login.srf?" SyncOnText 0 "Sign in" "" # # Modified to INDEX MOTION to avoid different login id session assignments... # #Wait 1576 #FollowLink 0 137 "Sign in" "http://login.live.com/login.srf?wa=wsignin1.0&rpsnv=11&ct=1260402405&rve" \ # "r=5.5.4177.0&wp=MBI&wreply=http:%2F%2Fskydrive.live.com%2Fwelcome.aspx&l" \ # "c=1033&id=250206&mkt=en-US" "" # # Added Sync to await login screen... # SyncOnText 0 "E-mail address:" "" # # Input login details and submit... # InputValue 0 92 "TEXT" "i0116" "login" "evalid2009@live.com" "" "" ElementBlur 0 92 "i0116" "" "" Wait 1884 InputValue 0 107 "TEXT" "i0118" "passwd" "evalid+test" "" "" Wait 2018 InputValue 0 97 "RADIO" "i0138" "LoginOptions" "3" "TRUE" "" Wait 2304 SubmitClick 0 80 "i0011" "SI" " Sign in " "" NAV Wait 2493 FollowLink 0 58 "More ?" "https://account.live.com/#" "" NO_NAV Wait 2761 FollowLink 0 68 "SkyDrive" "http://g.live.com/9uxp9en-us/hdr_more2??su=http://shared.live.com/Live.A" \ "ccountManagement" "" # Recording stopped at: <2009/12/09 12:16:38>

• Create a New Presentation Script
  Click To Load newppt.evs

  # # Recording by eValid™ V9 Build #292, Build Date: (Oct 20 2009) # Copyright © 2009 by Software Research, Inc. # Recording made on: Microsoft Windows Vista Service Pack 1 (IE 7.0.6001.18000), HostName "aruba" # Recording started at: <2009/12/09 12:33:33> # ProjectID "Project" GroupID "microsoft" TestID "newppt" LogID "AUTO" # # Click on Public folder... # FollowLink 0 244 "Public" "http://cid-636721b33b1d7b0a.skydrive.live.com" \ "/browse.aspx/.Public" "" Wait 1878 # # Click on New drop-down list... # FollowLink 0 152 "New ?" "http://cid-636721b33b1d7b0a.skydrive.live.com/" \ "browse.aspx/.Public#" "" NO_NAV Wait 1172 # # Click on Web App Selection... # FollowLink 0 159 "Microsoft PowerPoint presentation" "http://cid-636721b33b1d7b0a.skydrive.live.com/newdocument.aspx/.Public?x" \ "t=pptx&ref=1" "" Wait 1486 # # Accept the default file name and Click Create... # SyncOnText 0 "New Microsoft PowerPoint presentation" "" SubmitClick 0 166 "actionPageSubmit" "Create" "Create" "" NAV # # Sync to wait for Microsoft PowerPoint Web App to fully appear (load)... # SyncOnText 0 "Loading" "number:0" SyncNotOnElementProperty 0 "innerText" "Loading..." "number:0" # # Click to add title... # IndexSet 0 IndexFindElement 0 DOWN "id" "svdiv" "number:0" Wait 1000 IndexFindElementEx 0 DOWN "name:id" "value:1" "name:tagName" "value:DIV" "name:innerHTML" "value:<IMG " "number:0" Wait 1000 IndexElementClick 0 "number:0" Wait 1000 # #KeyText 0 "HELLO WORLD!" => REPLACED by INDEX MOTION sequences... # IndexSet 0 IndexFindElement 0 DOWN "tagName" "HTML" "number:0>>number:0" Delay 100 IndexFindElement 0 DOWN "tagName" "BODY" "number:0>>number:0" ValueSet "HELLO WORLD!" Delay 100 ValuePutElement 0 "innerText" "number:0>>number:0" Delay 100 ValuePutElement 0 "innerHTML" "number:0>>number:0" # # Remove focus by clicking outside area... # IndexSet 0 IndexFindElement 0 DOWN "id" "SlideBorder" "number:0" IndexElementClick 0 "number:0" Wait 1000 # # Click to add subtitle... # IndexSet 0 IndexFindElement 0 DOWN "id" "svdiv" "number:0" Wait 1000 IndexFindElementEx 0 DOWN "name:id" "value:1" "name:tagName" "value:DIV" "name:innerHTML" "value:<IMG " "number:0" Wait 1000 IndexElementClick 0 "number:0" Wait 1000 IndexFindElement 0 DOWN "id" "svdivAutoCleanup" "number:0" Delay 100 IndexFindElement 0 DOWN "id" "editTextDialog" "number:0" Wait 1000 IndexFindElementEx 0 DOWN "name:id" "value:2" "name:tagName" "value:DIV" "value:<IMG " "number:0" # #KeyText 0 "eValid Testing" => REPLACED by INDEX MOTION sequences... # IndexSet 0 IndexFindElement 0 DOWN "tagName" "HTML" "number:0>>number:0" Delay 100 IndexFindElement 0 DOWN "tagName" "BODY" "number:0>>number:0" ValueSet "eValid Testing" Delay 100 ValuePutElement 0 "innerText" "number:0>>number:0" Delay 100 ValuePutElement 0 "innerHTML" "number:0>>number:0" # # Remove focus by clicking outside area... # IndexSet 0 IndexFindElement 0 DOWN "id" "FishBowlPanel" "number:0" IndexMove +10 IndexElementClick 0 "number:0" Wait 1000 # # Click to add notes... # IndexFindElement 0 DOWN "id" "EditingNotesPanel" "number:0" IndexElementClick 0 "number:0" Wait 1000 IndexFindElementEx 0 DOWN "name:id" "value:editTextDialog_ta" "name:tagName" "value:TEXTAREA" "number:0" # #KeyText 0 "Testing Test - Hello ...." => REPLACED by INDEX MOTION sequences... # IndexSet 0 IndexFindElement 0 DOWN "tagName" "BODY" "number:0>>number:0" ValueSet "Testing Test - Hello ..." Delay 100 ValuePutElement 0 "innerText" "number:0>>number:0" Delay 100 ValuePutElement 0 "innerHTML" "number:0>>number:0" Wait 10000 #Breakpoint # Recording stopped at: <2009/12/09 12:34:24>

• Signout Account Script


  Click To Load signout.evs


  # # Recording by eValid™ V9 Build #292, Build Date: (Oct 20 2009) # Copyright © 2009 by Software Research, Inc. # Recording made on: Microsoft Windows Vista Service Pack 1 (IE 7.0.6001.18000), HostName "aruba" # Recording started at: <2009/12/09 15:45:22> # ProjectID "Project" GroupID "microsoft" TestID "signout" LogID "AUTO" # Simple recorded "Sign out" actions... # Wait 2617 FollowLink 0 62 "sign out" "http://login.live.com/logout.srf?ct=1260402302&rver=5.5.4177.0&lc=1033&i" \ "d=250206&ru=http:%2F%2Fcid-636721b33b1d7b0a.skydrive.live.com%2Fedit.asp" \ "x%2F.Public%2FPresentation11.pptx%3Fnd%3D1&mkt=en-US" "" Wait 2651 ElementBlur 0 92 "i0116" "" "" # # Can use the following to verify/validate signing out... # #Wait 3058 #ValidateSelectedText 0 72 0 "Sign in" "" #Wait 4852 SyncOnText 0 "Sign in" "" # Recording stopped at: <2009/12/09 15:45:47>

• (Optional) Cleanup Prior Presentation/Book/etc. Script


  Click To Load delete.evs


  # # Recording by eValid™ V9 Build #292, Build Date: (Oct 20 2009) # Copyright © 2009 by Software Research, Inc. # Recording made on: Microsoft Windows Vista Service Pack 1 (IE 7.0.6001.18000), HostName "aruba" # Recording started at: <2009/12/10 13:31:56> # ProjectID "Project" GroupID "microsoft" TestID "delete" LogID "AUTO" ScreenSize 1440 900 FontSize 2 DeleteCache DeleteCookies # # Call login.evs script file actions, to get Signed in... # CallScript "login.evs" Wait 1000 # # Go to the "Public" folder... # FollowLink 0 245 "Public" "http://cid-636721b33b1d7b0a.skydrive.live.com" \ "/browse.aspx/.Public" "" Wait 4276 #FollowLink 0 309 "Presentation1" "http://cid-636721b33b1d7b0a.skydrive.l" \ # "ive.com/self.aspx/.Public/Presentation1.pptx" "" # # Replaced the above with INDEX MOTION sequences, need to be flexible with # Presentation# file(s)... # IndexSet 0 IndexFindElementEx 0 DOWN "name:title" "value:stuff" "name:tagName" "value:IMG" "" IndexMove +1 IndexFindElement 0 DOWN "tagName" "A" "" IndexMove +1 IndexFindElement 0 DOWN "tagName" "A" "" IndexFollowLink 0 "" # # Added Synchronization to await opening of the options panel before trying # to Delete... # Wait 2317 SyncOnElementProperty 0 "id" "c_PageTitle" "" ElementFocus 0 352 "" "" "" Wait 1350 # # Added a "NO_NAV" to this out-of-box recorded script command so that eValid # will not await javascript navigation complete signals, that may or may not # arrive... # FollowLink 0 160 "Delete" "javascript:void(0)" "" NO_NAV # # Relying on default Settings to automatically CLOSE out modal confirmation # delete pop-up window, otherwise the following script command alternatives # modal actions necessary... # #ModalDialogWait 1000 #ModalDialogEnter 0 Wait 4856 FollowLink 0 130 "sign out" "http://login.live.com/logout.srf?ct=1260480729&rver=5.5.4177.0&lc=1033&i" \ "d=250206&ru=http:%2F%2Fcid-636721b33b1d7b0a.skydrive.live.com%2Fbrowse.a" \ "spx%2F.Public&mkt=en-US" "" # Recording stopped at: <2009/12/10 13:32:45>

Screen Shots
Here are screen shots that show the progress of the playback of the goALL.evs script and the scripts it calls. All of the images show up in a separate window.

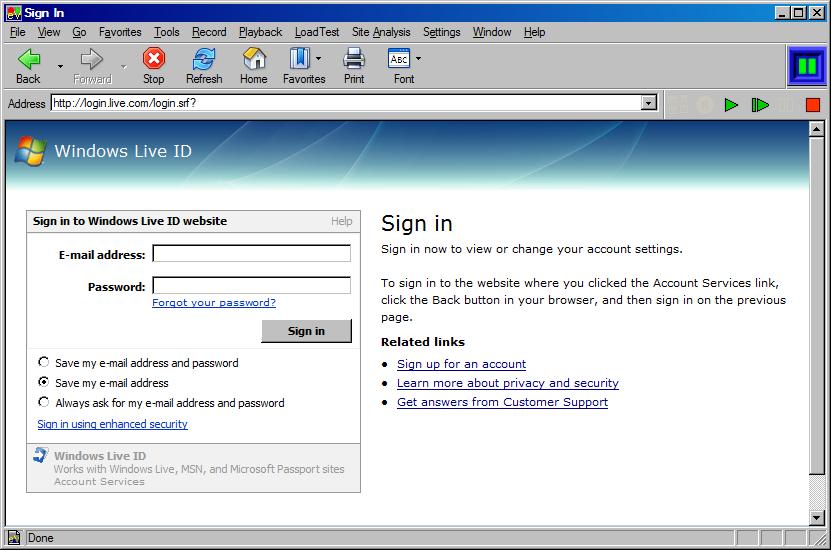

• Login1: Where the script begins.

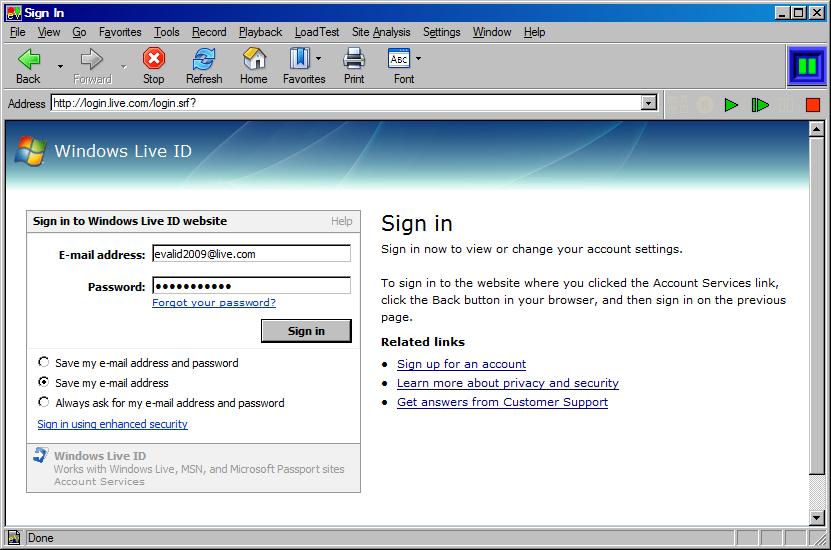

• Login2: The Windows Live ID login page.

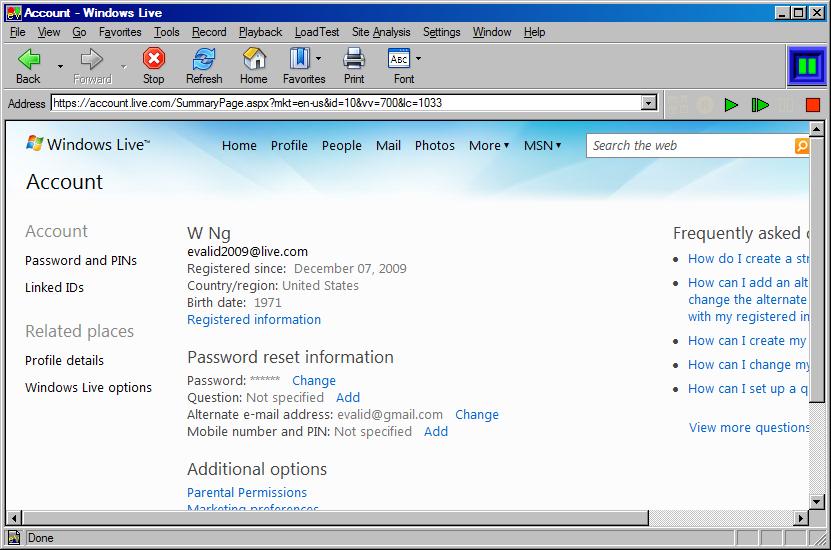

• PPT0: Right after logging into the account.

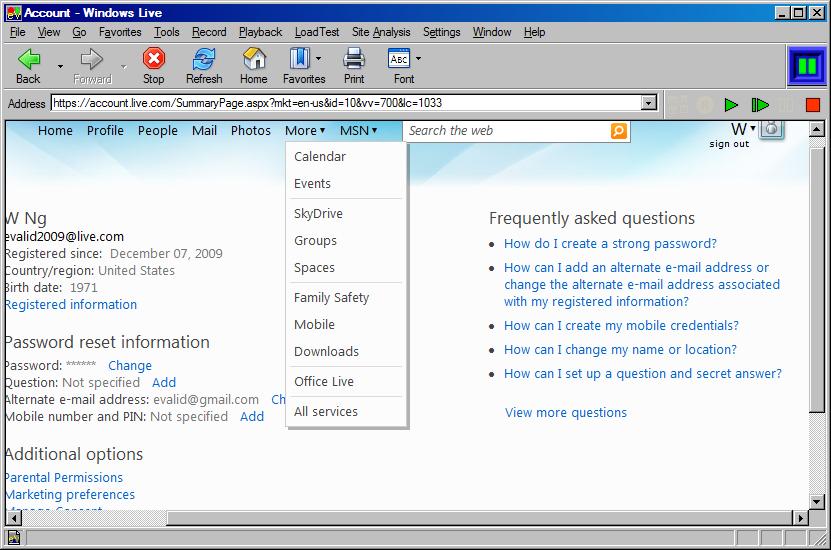

• PPT1: Select "SkyDrive" under the drop-down More.. menu item.

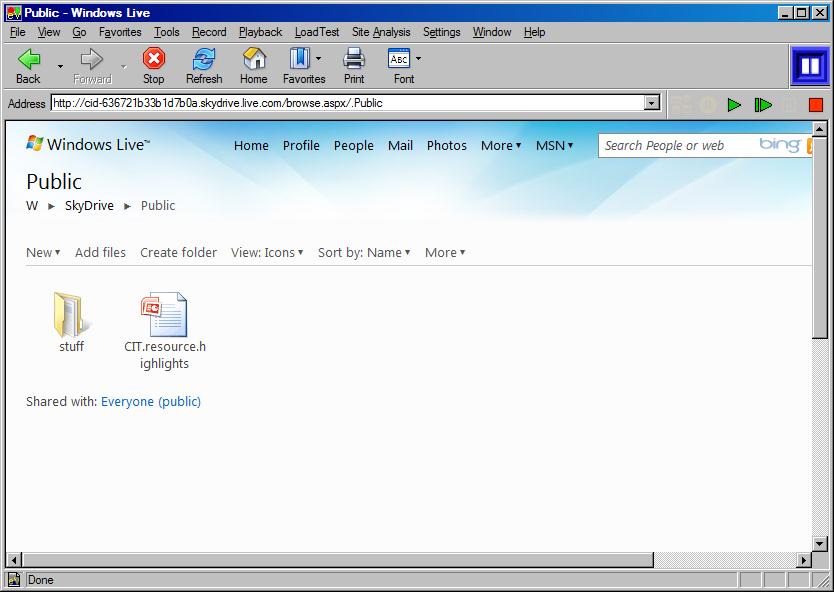

• PPT2: Moving over to public folder area.

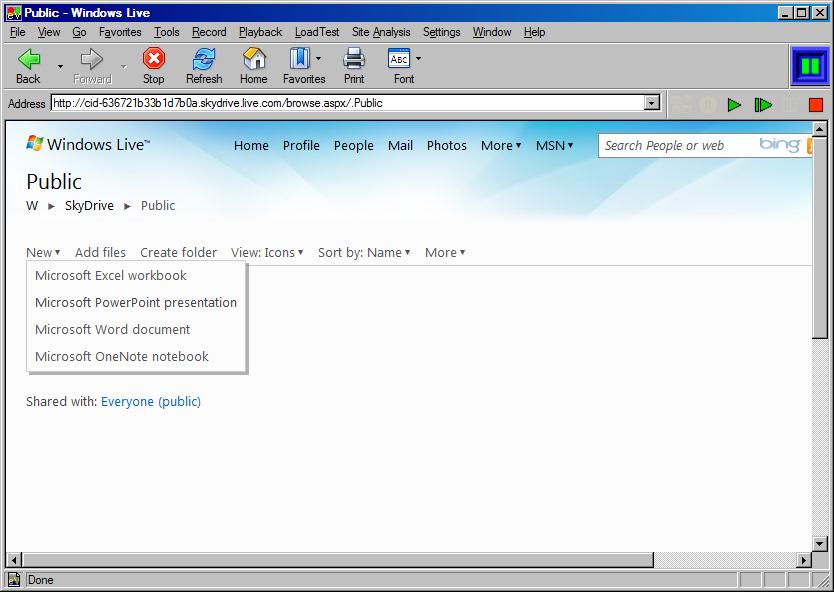

• PPT3: Selecting the PowerPoint Option.

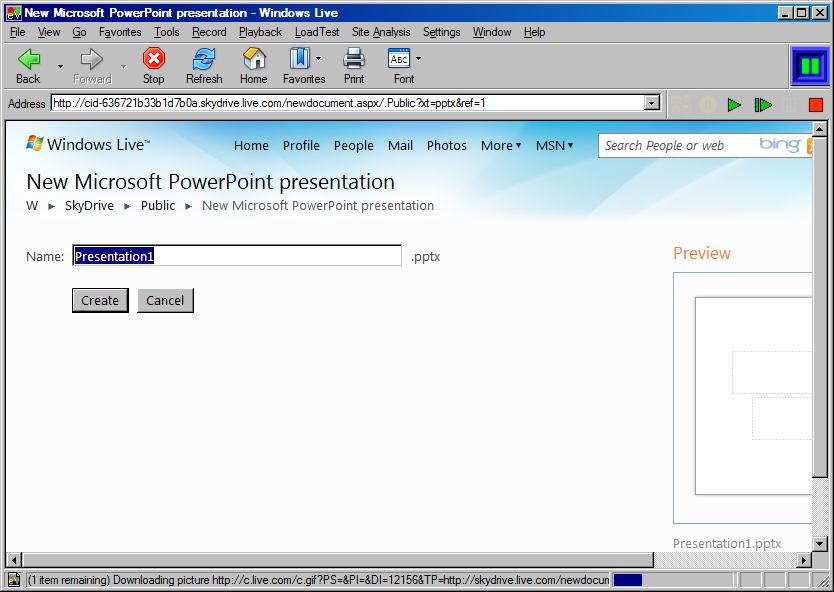

• PPT4: Naming the presentation "Presentation1" or "Default"...

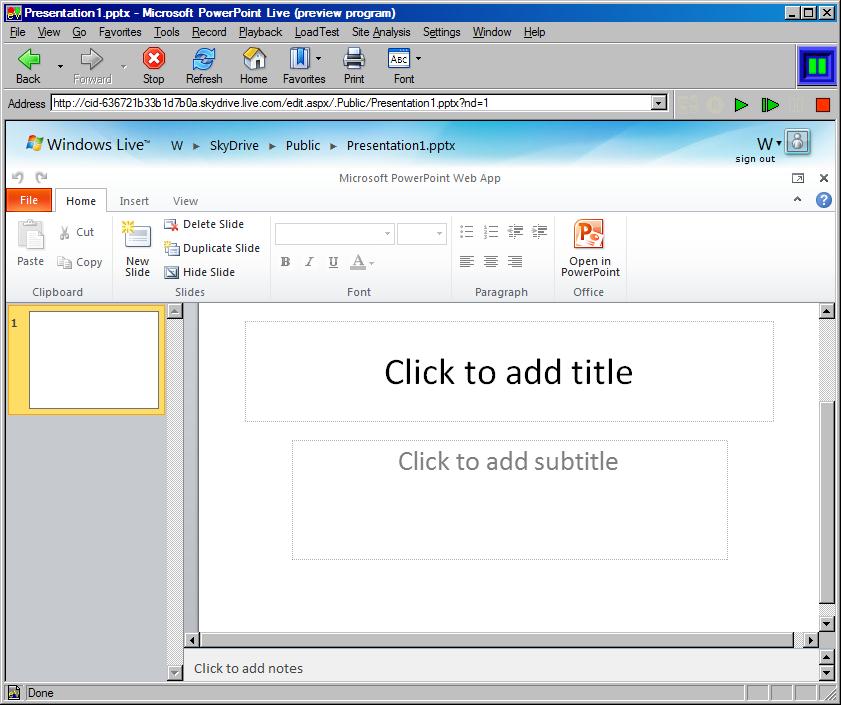

• PPT5: Opening up the text entry/edit area.

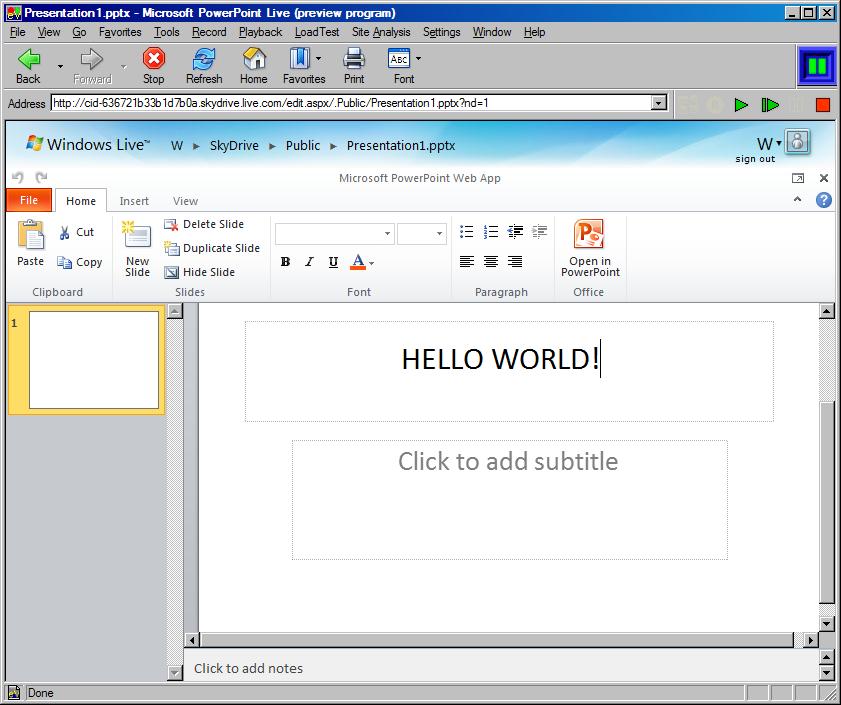

• PPT6: Adding "HELLO WORLD!" to the presentation title area.

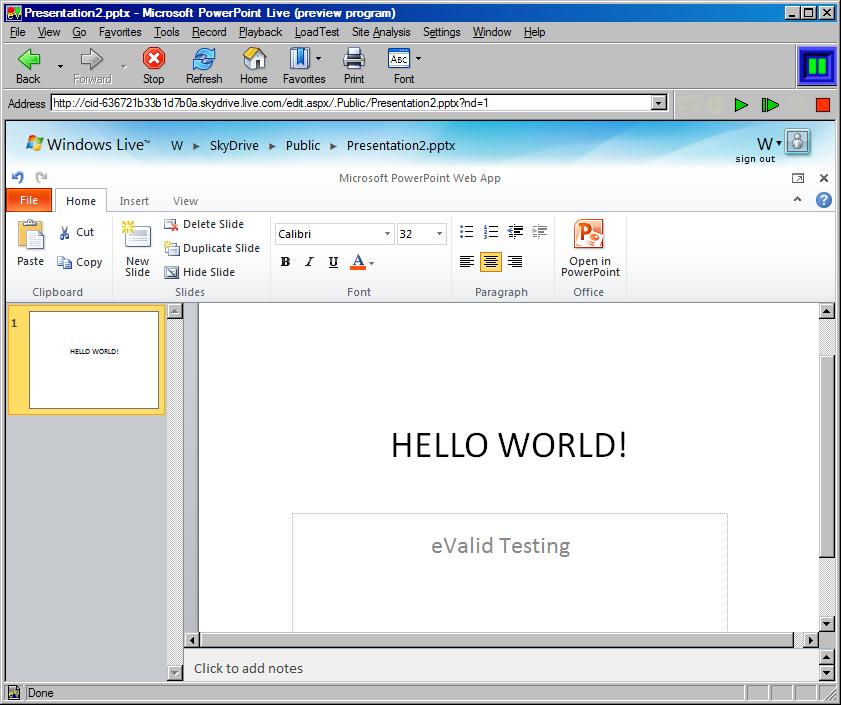

• PPT7: Adding "eValid Testing" to the presentation subtitle area.

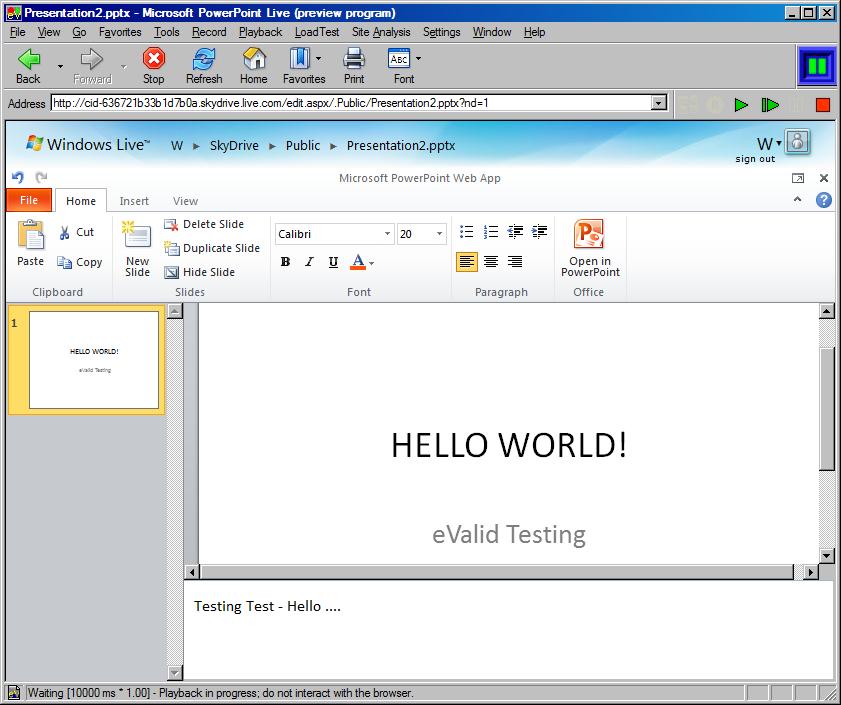

• PPT8: Adding "Testing Test - Hello ...." to the notes area.

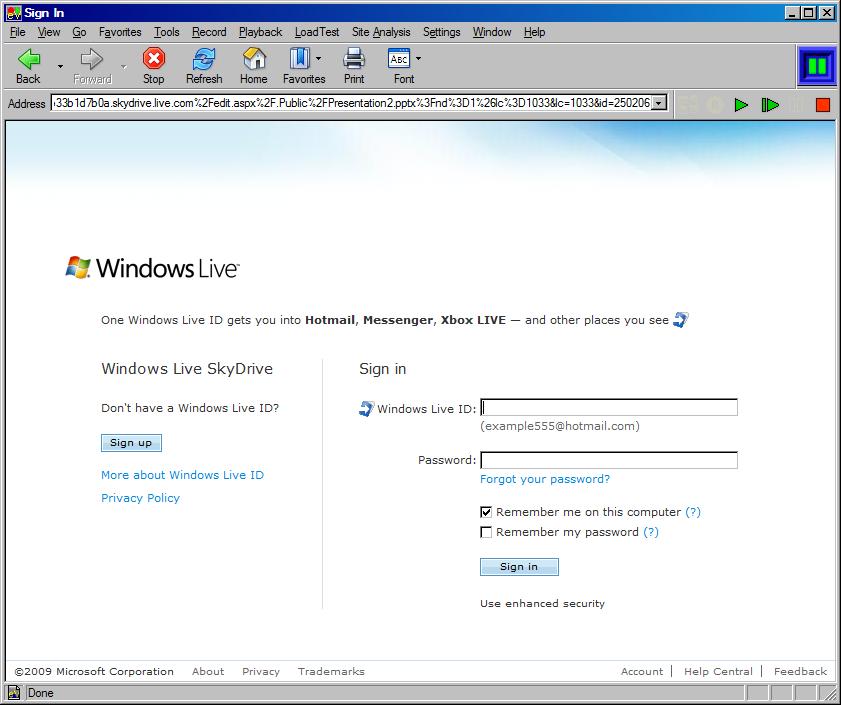

• Signout: Presentation draft is automatically saved upon signing out.

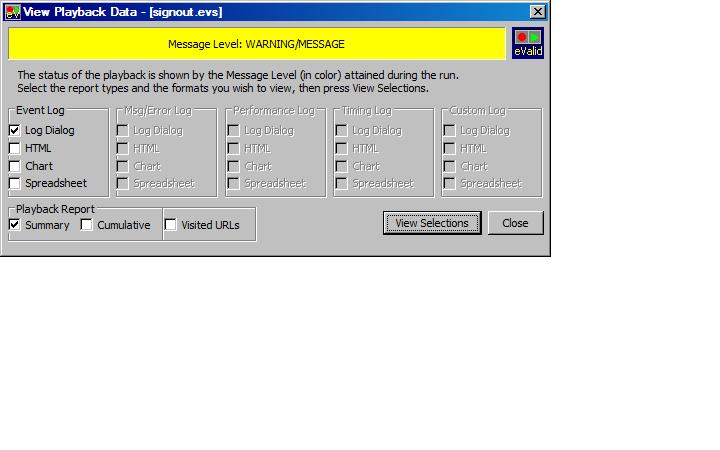

• Endplay: Playback Data Summary showing "Yellow Screen" Success and available View Selections.



Additional Notes

1. The above scripts were recorded from life and then augmented to handle the PowerPoint text entry area. From life commands are left in the script as comments so you can see where they were replaced/augmented.

2. Playback is slightly depending on allowing the Waits to run as recorded. An improved version of the scripts that does not depend on Waits at all is technically possible but requires finding each de-synchronization point and replacing it with the appropriate DOM processing command.

3. There is one instance of a SyncOnText for "Loading" that is followed by a SyncNotOnElementProperty for "Loading", and we have seen that if the server is very quick this sequence may not work. As written, the idea is that you DO see "Loading" and then, after a time, that phrase disappears -- a fact confirmed by the second DOM-based statement. You may be able to elide the first sync step without loss of generality.
