Summary
This page shows an example of eValid DOM-based index motion scripting that handles automated playback of the ICEfaces Autocompleter example.

Key points of this demonstration script are the following:

• The script is entirely "index motion" and does not depend in any way on natural (recorded) or manually added Wait or Delay times for completely synchronized operation.
• There are several instances of use of IndexFindElement passages to identify where to put data into the page
• The application is AJAX-based, so the response times vary and these are check using DOM synchronization commands.

Screen Shots
These screen shots correspond to various stages of the playback of the script.

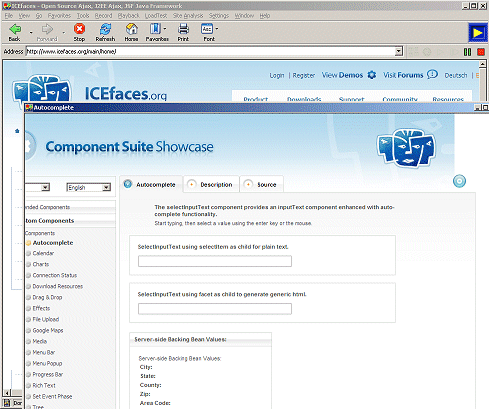

1. Initial Page Navigations
   Start at the ICEfaces home page and navigate down to the Component Suite showcase.

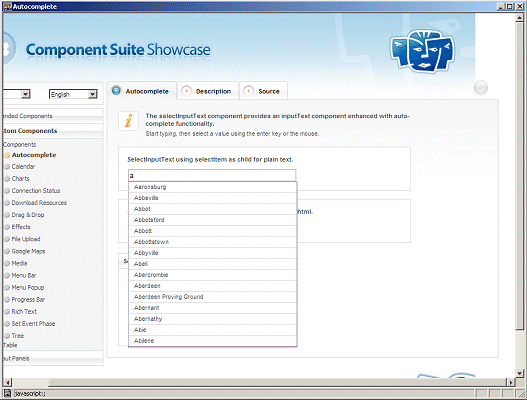

2. Setup First Selection




3. Wait for "Abbotsford" Result

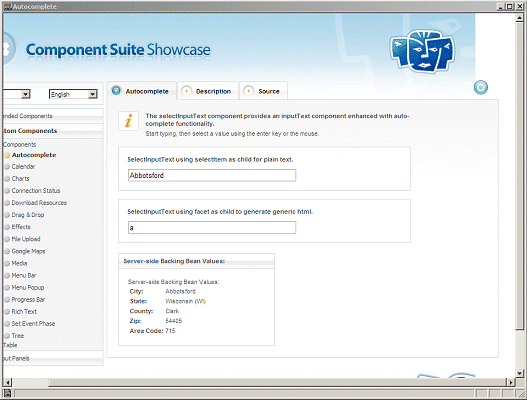

4. Go Into the Second Entry Area




Complete Script
Here is the script that was created for this AJAX synchronzation and index/motion command illustration.

# Recording by eValid V9 Build #288, Build Date: (May 16 2009) # Copyright © 2009 by Software Research, Inc. # Recording made on: Microsoft Windows Vista Service Pack 1 (IE 7.0.6001.18000) ProjectID "Project" GroupID "ice" TestID "face" LogID "AUTO" ScreenSize 1440 900 FontSize 0 DeleteCache DeleteCookies # *** Step 1: Navigate, with synchronizattion, to the starting page... InitLink "http://www.icefaces.org/main/home/" # Allow a brief interval for page download to settle... Delay 100 SyncOnElementProperty 0 "nameProp" "services" "" SyncOnElementProperty 0 "id" "welcomeImage" "" SyncOnElementProperty 0 "readyState" "complete" "" FollowLink 0 398 "Component Showcase" "http://component-showcase.icefaces.org/" "" SubFrameSet 1 "Autocomplete" SyncOnElementProperty 1 "innerText" "Powered By ICEfaces" "" ElementFocus 1 78 "navigationMenuForm:navPnlSrs:1:tree:n-0-0:navNodeLink" "Autocomplete" "" # *** Step 2: Having arrived in the right place, now get everything # ready for the initial input... # A NO_NAV tag added to suppress page complete due to JavaScript... FollowLink 1 78 "Autocomplete" "javascript:;" "" NO_NAV # Synchronize to confirm that the page has arrived completely... SyncOnText 1 "SelectInputText using" "" ElementBlur 1 78 "navigationMenuForm:navPnlSrs:1:tree:n-0-0:navNodeLink" "Autocomplete" "" ElementFocus 1 78 "navigationMenuForm:navPnlSrs:1:tree:n-0-0:navNodeLink" "Autocomplete" "" # A NO_NAV tag added to suppress page complete due to JavaScript... FollowLink 1 78 "Autocomplete" "javascript:;" "" NO_NAV ElementDblClick 1 78 86 133 "navigationMenuForm:navPnlSrs:1:tree:n-0-0:navNodeLink" "Autocomplete" "" SyncOnText 1 "SelectInputText using" "" SyncOnText 1 "Powered By" "" ElementBlur 1 78 "navigationMenuForm:navPnlSrs:1:tree:n-0-0:navNodeLink" "Autocomplete" "" # Find the 1st pulldown section in the DOM... IndexSet 0 IndexFindElement 1 DOWN "id" "iceform:icepnltabset:0:AutoCmpTxt" "" IndexInputValue 1 "TEXT" "a" "" "" SyncOnElementProperty 1 "id" "iceform:icepnltabset:0:AutoCmpTxt_div" "" SyncOnElementProperty 1 "zIndex" "2" "" IndexFindElement 1 DOWN "tagName" "DIV" "" IndexFindElement 1 DOWN "innerText" "Abbotsford" "" IndexFindElement 1 DOWN "autocompleteIndex" "3" "" IndexElementClick 1 "" # *** Step 3: Now wait until the server generates the "Abbotsford" response... # Added sync/validation point... ElementFocus 1 321 "iceform:icepnltabset:0:AutoCmpTxtFace" "" "" Delay 1000 ElementBlur 1 321 "iceform:icepnltabset:0:AutoCmpTxtFace" "" "" Delay 1000 SyncOnText 1 "Server-side Backing Bean Values: City:Abbotsford" "" # Find the 2nd pulldown section in the DOM... IndexSet 0 IndexFindElement 1 DOWN "id" "iceform:icepnltabset:0:AutoCmpTxtFace" "" IndexInputValue 1 "TEXT" "a" "" "" SyncOnElementProperty 1 "tagName" "TR" "" SyncOnElementProperty 1 "className" "icePnlGrp exampleBox firstChildTitle selectInputTextContainer" "" SyncOnText 1 "Abie" "" SyncOnElementProperty 1 "id" "iceform:icepnltabset:0:AutoCmpTxtFace_div" "" SyncOnElementProperty 1 "zIndex" "2" "" # *** Step 4: Finally, locate and navigate to the "AbieNebraksa68001" selection... IndexFindElement 1 DOWN "tagName" "SPAN" "" IndexFindElement 1 DOWN "tagName" "DIV" "" SyncOnElementProperty 1 "innerText" "AbieNebraska68001" "" IndexFindElement 1 DOWN "innerText" "AbieNebraska68001" "" IndexElementMouseDown 1 "" IndexElementClick 1 "" # Added sync/validation point... ElementFocus 1 321 "iceform:icepnltabset:0:AutoCmpTxtFace" "" "" Delay 1000 ElementBlur 1 321 "iceform:icepnltabset:0:AutoCmpTxtFace" "" "" Delay 1000 SyncOnText 1 "Server-side Backing Bean Values: City:Abie" "" # End of Script

To download this script into your eValid script window click here: face.evs
