Background
This page documents an example test script for the Google Gmail application. The eValid script (see below) exercises a command email activity within the trial Gmail account; based on the basic HTML Gmail view.

• Starting Page

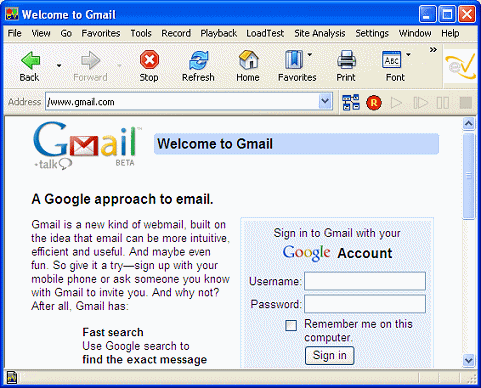

  Here is the starting page for the example script.



• Script Properties
  In operation, this script performs the following functions:
  1. Signs on to a Gmail account.
  2. Confirms that the gmail application is present (may require a synchronization step).
  3. Composes an email.
  4. Sends it to itself.
  5. Confirms that it has been received (may require a synchronization step).
  6. Deletes the email (so that the email system is returned to the initial state).
  7. Signs out to return Gmail to the original state.

• Script Text
  Cut and paste the script shown from the area below into an eValid script window, and press play.

  # # Copyright 2000-2012 by Software Research, Inc. # Recording made on: Microsoft Windows 2000 Service Pack 3 (IE 6.0) # ProjectID "Motion" GroupID "Google" TestID "17-google-gmail" LogID "AUTO" ScreenSize 1280 1024 FontSize 2 DeleteCache DeleteCookies InitLink "https://www.gmail.com/" Wait 1037 SyncOnText 0 "Username:" "" Wait 1528 InputValue 0 128 "TEXT" "Email" "Email" "sr.evalid1" "" "" ElementFocus 0 136 "Passwd" "" "" Wait 1446 ElementFocus 0 136 "Passwd" "" "" Wait 1316 InputValue 0 136 "TEXT" "Passwd" "Passwd" "«”󥔤éŒá¶…»" "" "" Wait 160 SubmitClick 0 149 "" "signIn" "Sign in" "" Wait 1391 SyncOnText 0 "Sign out" "" SyncOnText 0 "sr.evalid1@gmail.com" "" Wait 1875 #FollowLink 0 51 "Compose Mail" "https://mail.google.com/mail/h/wvz5cfxqmu2t/?v=b&pv=tl&cs=b" "" IndexSet 0 IndexFindElement 0 DOWN "innerText" "Compose Mail" "" IndexMove +1 IndexFollowLink 0 "" Wait 2876 InputValue 0 117 "TEXTAREA" "" "to" "sr.evalid1@gmail.com" "" "" Wait 3179 InputValue 0 132 "TEXT" "" "subject" "testing with eValid" "" "" Wait 3263 InputValue 0 149 "TEXTAREA" "" "body" "Hello folks, I can't wait to use " \ "eValid for my webtesting assignment..." "" "" Wait 922 SubmitClick 0 107 "" "nvp_bu_send" "Send" "" Wait 1170 SyncOnText 0 "Your message has been sent." "" Wait 471 ValidateSelectedText 0 45 3 "Your message has been sent." "" Wait 2714 #FollowLink 0 138 "testing with eValid - Hello folks, I can't wait to use eValid for my web" \ # "testing assignment" "https://mail.google.com/mail/h/yk6tkkxvhblm/?v=c&th=11aa2957387b63b7" "" IndexSet 0 IndexFindElement 0 DOWN "innerText" "testing with eValid - Hello folks, I can't wait to use eValid for my webtesting assignment" "" IndexFollowLink 0 "" Wait 3031 SubmitClick 0 111 "" "nvp_a_tr" "Delete" "" Wait 3549 SyncOnText 0 " The conversation has been moved to the Trash." "" Wait 461 ValidateSelectedText 0 41 0 " The conversation has been moved to the T" \ "rash." "" Wait 3905 #FollowLink 0 24 "Sign out" "https://mail.google.com/mail/h/3g78aj76r7p0/?logout&hl=en" "" IndexSet 0 IndexFindElement 0 DOWN "innerText" "Sign out" "" IndexFollowLink 0 "" Wait 1588 SyncOnText 0 "Sign in to Gmail with your" "" # End of script.
