BenchMark Test Example
eValid Home

[Back to Summary of Practical Applications]

Introduction

The BenchMark Test establishes the amount of time a sequence of browser actions takes.

Recording The Test

Start Recording Pick a start page for your test and click Record > Start Recording.
For this example we will use Hewlett Packard's webpage located at http:// www.hp.com.

Stop Recording Navigate the site as you would normally. Your actions will be recorded in the script.
When you are finished, click Record > Stop Recording.

Benchmark Script File A typical completed script file is shown here.
Download benchmark.evs

Benchmark Playback

To benchmark the site recorded in the script, play back the Benchmark Script File several times. This will make sure the results of a Benchmark Test are meaningful.

Enter the Preferences Window To enable the Multiple Playback option, begin by clicking Settings > Record/Play Preferences to enter the Preferences Window.

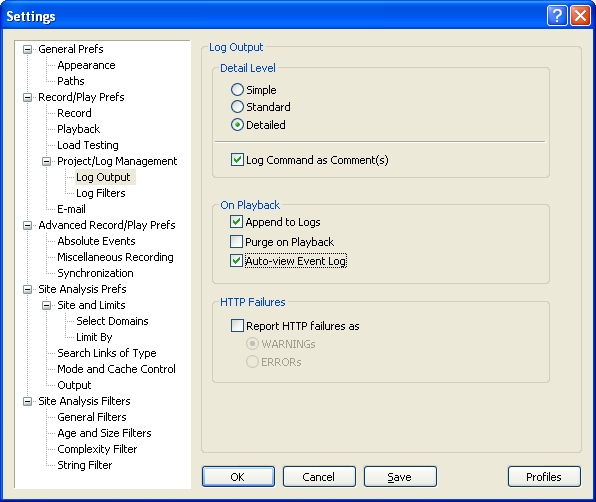

Playback Preferences Window Enter the amout of times you would like to run the playback in the Multiple Playbacks 'n' value box and make sure Append to Logs is checked.

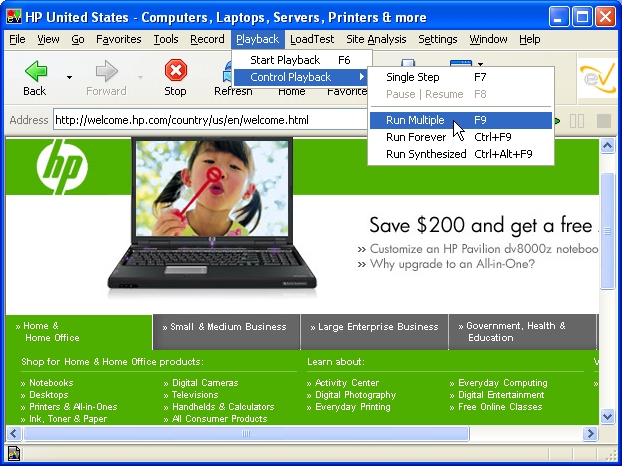

Run Multiple Playbacks Click on Playback > Control Playback > Run Multiple to playback your recorded script 'n' times as set previously in the Multiple Playbacks 'n' Value box.

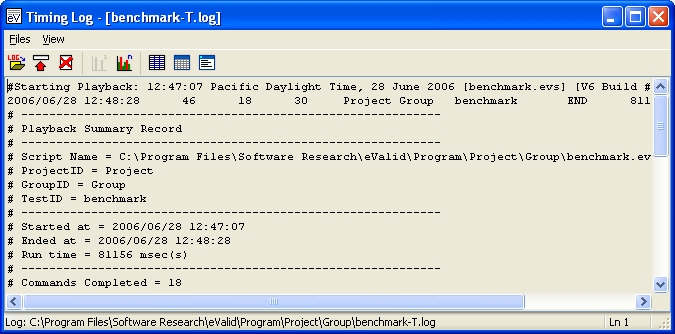

View Timing Log When the multiple playbacks have completed, open the Timing Log by clicking Window > Logs > Timing Log.

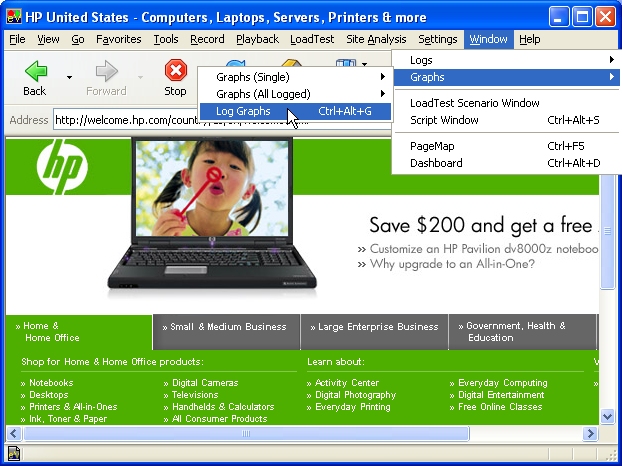

Open Charts and Descriptions Page When you are finished viewing the Timing Log you can easily view the information in graphical format by viewing the History Chart. To view the History Chart you can either select the View Graphs button at the bottom of the Timing Log, or if you have closed the timing log, select Window > Graphs > Log Graphs.

This will bring up the eValid Dynamic Analysis Charts and Descriptions page.

History Chart Click on the History Chart button.
